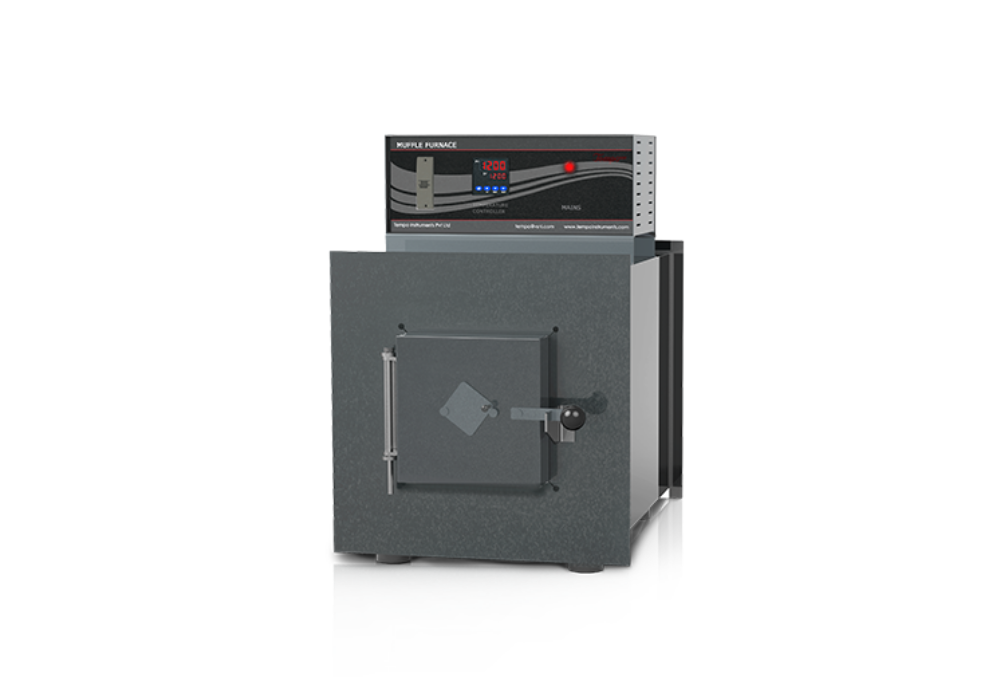

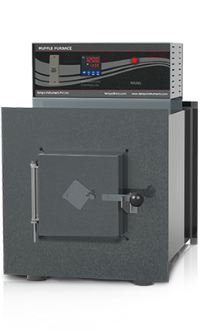

MUFFLE FURNACE

Temperature Range : 1000 ℃ / 1200 Deg℃
Supply : 230V AC,

Product Details

“Servell-Bio” make Muffe Furnace are designed & manufactured to comply requirements for Laboratory & Industrial applications. It is used for engineering tests of soils and aggregates, cement testing, ashing organic and inorganic samples, gravimetric analysis, ignition tests, etc. “Servell-Bio” make Muffle Furnace are constructed in Horizontal / Rectangular model. Insulation is with high grade insulation material.

MUFFLE Furnace

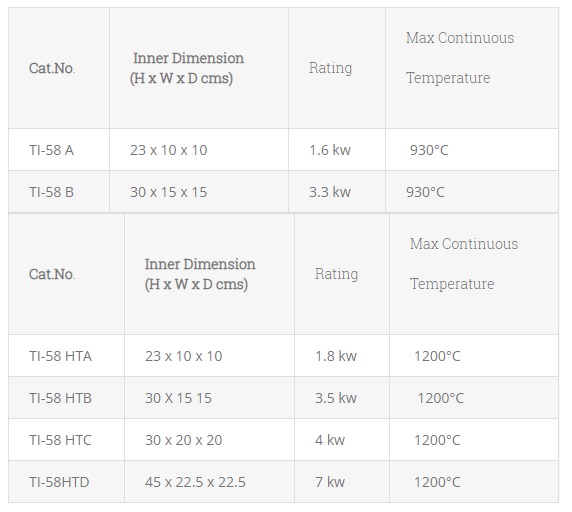

Models & Constructions details

Standard Model

Outer made of Mild Steel, duly painted with Hammertone Paint....

GMP Model

Outer made of S.S.304 mirror finish....

Construction

Outer Body made of GI / SS Sheet. Duly insulated with cerewool / High temperature insulating material...

Single door made of brick work and cementing fitted in with single hole at Center..

SPECIFICATIONS

Temperature Range : 1000°C to 1200 Deg°C
Supply : 230V Ac, 50 Hz, Single Phase.

ORDER NOW

Technical Specifications

Imported microprocessor based auto tune PID controller with CE mark & dual display of set value & process value..

Heating is effected by means of element made of best quality Nichromewire for 930°C & Kanthal A1 wire for 1200 Deg.C. wounded on the muffle. Insulation : Heating element wounded with high grade cerewool blanket & gaps are filled with suitable insulating material..

■ Data Logger.
■ Safety digital temperature controller.
■ Timer .
