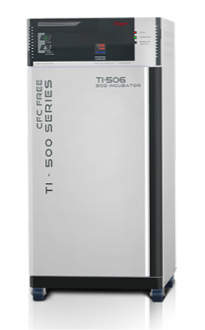

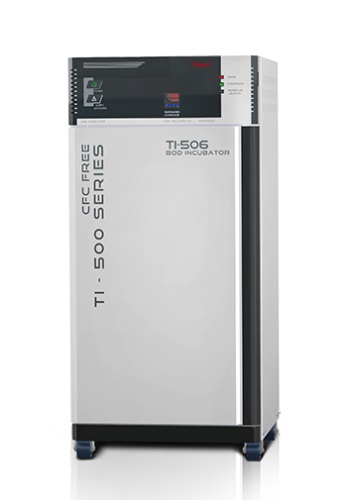

BOD INCUBATOR

“Servell-Bio” make BOD incubators are manufactured to comply requirement of Industries. Specically designed for long term and stable continuous operation ideal for Pharmaceuticals, Bio technology and Research institutions for storage and incubation studies. Incubators to provide condition for optimal growth of Microbiology cultures, Biological labs for preservation of vaccines, Serological and compliment xation tests, General low temperature uses in physical /chemical labs, R&D Center, Quality Control Laboratory, General laboratories of industries, Pharmaceuticals, Chemicals, Petrochemicals, Oil & Gas, Cement, Pulp and Paper, Fertilizers, Defence, Railways, Paint etc….

BOD INCUBATORS

Models & Constructions details

Standard Model

Inner Chamber made of Stainless Steel (S.S.304) mirror finish & Outer G.I. duly powder coated..

GMP Model

Inner Chamber made of Stainless Steel (S.S.316) mirror finish & Outer S.S.304 matt finish..

Construction

“Servell-Bio” BOD Incubator is made of double walled construction with thick high grade PUF insulation. Full view inner acrylic door & front door with gasket & locking arrangement. Motorized Blower at back side of the chamber develops unique air ow system to maintain uniform temperature condition inside the chamber. Unique air ow assures quick recovery after door openings.The unit is provided with user friendly adjustable specially designed S.S rod trays, ensures uniform temperature distribution. Mounted on Fibre / PU wheels for easy movement.

50 mm validation port hole with silicon rubber seal to insert sensors for validation. Full view observation Acrylic door with gasket to observe sample inside the chamber.

SPECIFICATIONS

Temperature Range : 5°C to 60°C
Temperature Accuracy : ± 0.5°C
Supply : 230V Ac, 50 Hz, Single Phase.

ORDER NOW

Technical Specifications

Imported microprocessor based auto tune PID controller with CE mark & dual display of set value & process value.

High quality U shape S.S. tubular heater are used for better heating.

Motorized blower at back side of the chamber develops unique air flow system which ensures max. uniform temperature & humidity condition inside the chamber.

CFC Free hermetically sealed Emerson Copeland make compressor for better cooling with R134 A (Eco Friendly) refrigerant with time delay to safe guard compressor system.

■ PLC for auto change over for standby refrigeration with HMI.
■ CFR 21 part 11 compliance software.
■ Stand by refrigeration system.
■ Data Logger
■ Safety digital temperature controller
■ Data Scanner complete with sensor.
■ SMS Mobile alert system.
■ Door access security system.
■ Timer
