Biosafety Cabinets

Structure made of 19mm thick ply-board with melamine lamination..
Efficiency of HEPA filters 99.97%, particle retention >0.3 micron.
Static pressure manometer fitted.

Product Details

“servellbio” makes : Structure made of 19mm thick ply-board with melamine lamination. Work bench of perforated stainless steel. Front acrylic door with two holes provided with cloth sleeves. Properly balanced blowers fitted on1/4 H.P. electric motor provided on the top portion to supply sufficient air to HEPA filter. One HEPA filter provided on top of work bench horizontally to supply clean air to the work bench vertically. Another HEPA Filter provided on side for exhaust system. Efficiency of HEPA filters 99.97%, particle retention >0.3 micron. One Pre-filter provided on the top to supply pre filtered air to the blowers. One fluorescent tube and one U.V. germicidal tube provided over work bench. Static pressure manometer fitted. Cock for Gas or air & vacuum line. Ground level screw (4No.) fitted. Back cover fixed with screws for convenient removal for attending blowers, filters and motor when needed. Cabinet fitted with exhaust and virus burnt system..

Biosafety Cabinets

Models & Constructions details

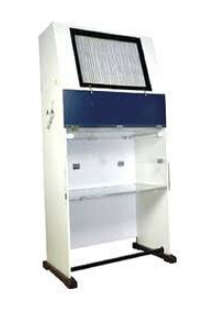

Wooden Cabinet Model

Structure made of 19mm thick ply-board with melamine lamination...

Stainless Steel Model

made but structure made of Stainless steel. Work surface of Stainless Steel...

Construction

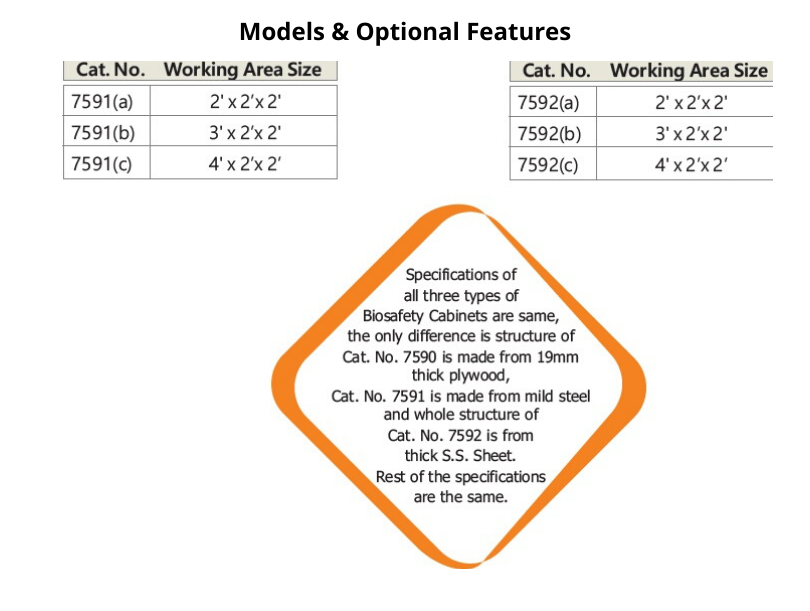

Servell-Bio Specifications of all three types of Biosafety Cabinets are same, the only difference is structure is made from 19mm thick plywood, Structure is made from mild steel and whole structure is from thick S.S. Sheet. Rest of the specifications are the same..

BIOSAFETY CABINET

Working Area 32x24x27cm.
Working Surface Glossy Stainless Steel.
Dimensions H-55cm x W -36 cm x D - 25 cm(Approx.)
Weight 14.5 Kg. Approx.
HEPA filter efficiency 99.97 % down to 0.3 micron.
Pre filter efficiency 99 % down to 5 micron.
Power Supply requirement 230V A.C. 50 Hz single phase.
Power Consumption 200 Watt.

ORDER NOW

Technical Specifications

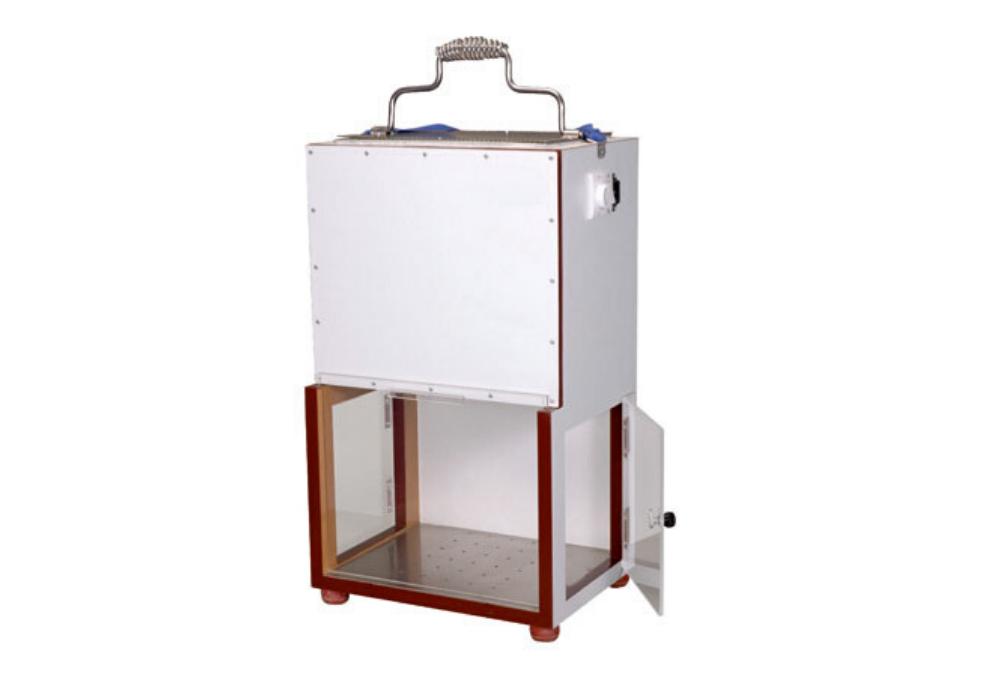

Medium Density Fibre (MDF) sturdy body sunmica finish (interior & exterior), Acrylic covers on front & slides, front door height adjustable removable base plate. Carrying Handle & Shoulder Strap for on-filed carrying 9 watt-ultra-violet germicidal lamp over working platform for bio-safety. Noiseless & efficient blowers with speed regulator.
