Inner & outer made of Stainless Steel (S.S.304) with mirror finish...
Inner made of Stainless Steel (S.S.316) & Outer S.S.304 mirror finish...

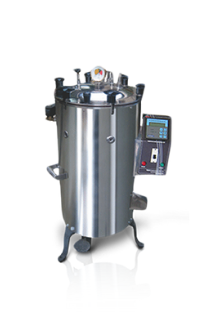

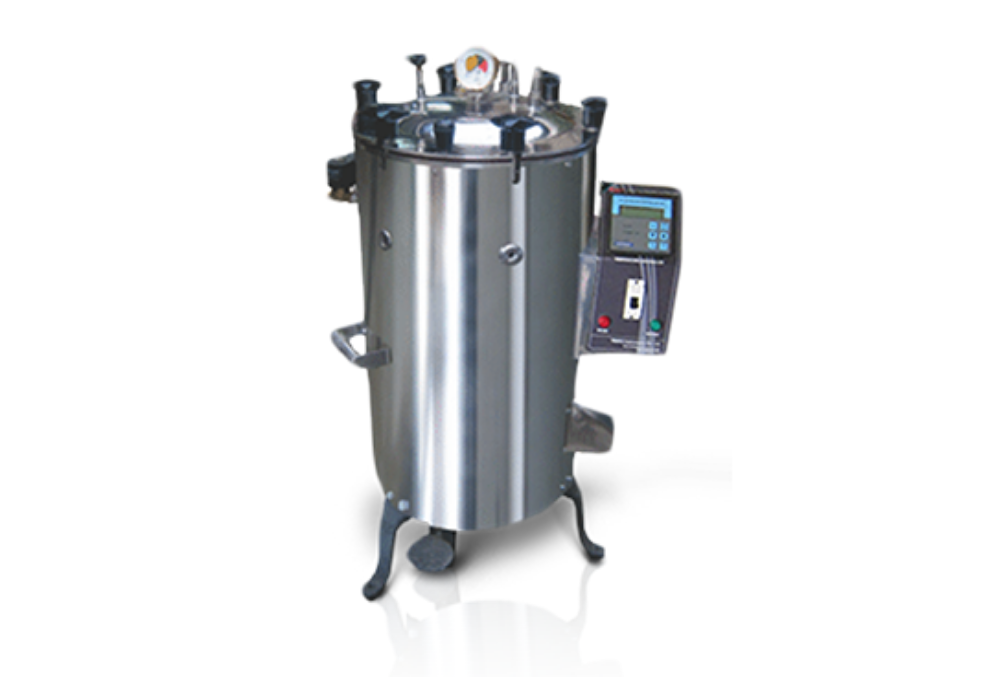

Vertical double walled design, has single chamber for Steam & water.Lid, flange & bottom plate is also made of S.S, all joints are Argon welded. Joint less silicon Gasket. Heavy duty industrial range heater. Lid fitting Pressure gauge 0-30 PSI, safety spring loaded Pressure valve, steam Release valve. Safety high pressure release valve. Foot lifting arrangement is provided in 121C/D/E/F, Basket made of thick Stainless Steel (S.S.) rod wire mesh..
Imported microprocessor based auto tune PID controller with CE mark & dual display of set value & process value.
Heating elements made from the best quality Kanthal DSD wire are used on refractory supports.
■ Data Logger.
■ Safety digital temperature controller.
■ Timer .
■ Safety pressure control switch.
■ Vacuum breaker & self purging system.
■ 4 channel self data logger with printer interface.
■ Water level indicator with glass tube.
■ Foot pedal lifting arrangement for size no A & B.
